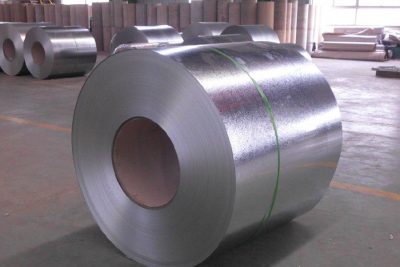

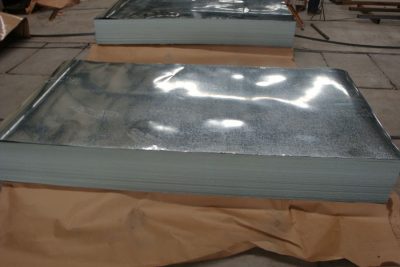

Galvanized Steel Coil & Sheet

Hot Dipped Galvanized Steel Coil and alloying Galvanized Coil have excellent performance, possessing ideal comprehensive properties of corrosion resistance, formation and coating.

Galvanized steel (GI) are mainly used in building, automobiles, metallurgy, electric equipments and more.

Building – roof, door, window, roller shutter door and suspended skeleton
Automobiles – vehicle shell, chassis, door, trunk lid, oil tank, and fender
Metallurgy – steel sash blank and color coated substrate
Electric equipements – refrigerator base and shell, freezer, and kitchen equipment

As a leading galvanized steel coil manufacturer, INDO ASIA CORP adheres to strict quality standards to produce our galvanized steel coils/sheets. We guarantee our products meet our customer’s requirement.

Specifications

Technical Standard	ASTM DIN GB JIS3302
Grade	SGCC SGCD or Customer’s Requirement
Type	Commercial Quality/DQ
Thickness	0.13mm-4.0mm
Width	600mm-1500mm
Type of Coating	Hot Dipped Galvanized
Zinc Coating	30-275g/m²
Surface Treatment	Passivation/skin pass/non-oiled/oiled
Surface Structure	Zero Spangle / Mini Spangle / Regular Spangle / Big Spangle
ID	508mm/610mm
Coil Weight	3-10metric ton per coil
Package	Standard export package or customized
Hardness	HRB50-71 ( CQ Grade )
Hardness	HRB45-55 ( DQ Grade )
Yield Strength	140-300 (DQ Grade)
Tensile Strength	270-500 (CQ Grade)
Tensile Strength	270-420 (DQ Grade)
Elongation Percentage	22 (CQ Grade thickness less 0.7mm)
Elongation Percentage	24 (DQ Grade thickness less 0.7mm)

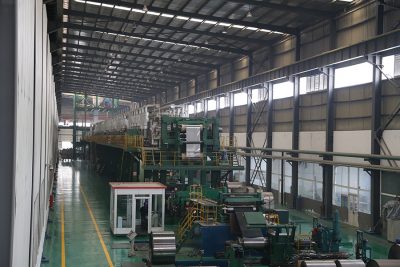

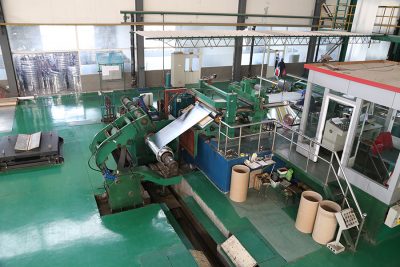

Production Line

The annual capacity of Galvanized Line is 320,000 tons. We adopt the UEC hot dip galvanizing process which is the most advanced and wildly used in the world. The main specification of product is 0.15~1.5mm X 800~1250mm.

We could manufacture high performance GI with high zinc coating, non-spangle, minium spangle, regular spangle or big spangle along with the advanced processing of oiled and skin-passed. The product can be used in building materials and electrical appliance.
